51 71... Seal the units compartment partition wall at the top center (version to 10/2012)

Necessary preliminary tasks:

Remove gasket (1) for engine compartment lid.

Release screws (2, 4).

Remove partition wall (3).

If necessary, remove butyl residue from the body.

Fig 1: Identifying Gasket, Partition Wall And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

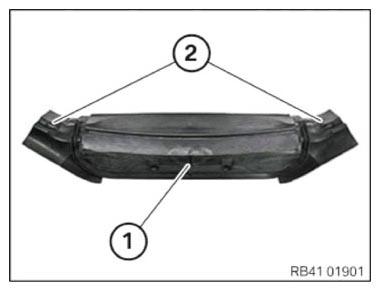

NOTE: A modified partition wall (1) was installed from version 10/2012.

The modified partition wall can be identified by the additional drainage channels (2).

When using the modified partition wall, they must not be sealed with butyl.

Fig 2: Identifying Drainage Channels And Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

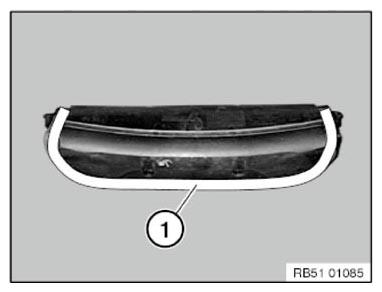

Remove sponge rubber seal or butyl residue from area (1).

Fig 3: Identifying Sponge Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

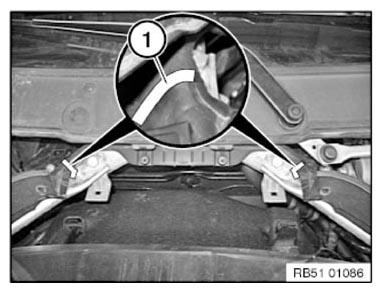

Press protruding sponge rubber seal back into the joints (1) or cut it off.

Installation note:

Prepare 2 pieces of butyl rope 6-7 mm in dia. and 10 cm long.

Seal joints (1) with butyl rope.

Fig 4: Identifying Joints

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apply butyl rope in area (1) along the component edge.

Compress the butyl rope evenly when inserting the partition wall.

Tighten down screws.

Reassemble the vehicle.

Fig 5: Identifying Sponge Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.
