35 40 001 Removing and installing or replacing accelerator pedal module

Take off cap.

Release screw.

Pull accelerator pedal module upwards out of fixture.

Installation:

Tightening torque: 35 40 1AZ .

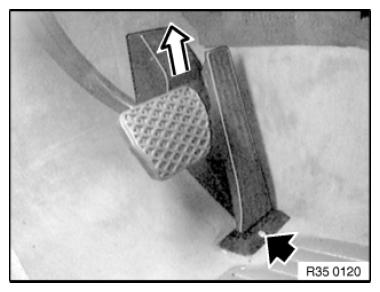

Fig 1: Pulling Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off plug (1).

Remove accelerator pedal module.

Fig 2: Identifying Plug Of Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.
