51 12 828 Removing and installing/replacing left or right guide for rear bumper

Necessary preliminary tasks:

• Remove REAR BUMPER TRIM
• Remove BUMPER SIDE SECTION

Unscrew nuts (1).

If necessary, release nut (2).

Remove guide (3).

Tightening torque 51 12 5AZ .

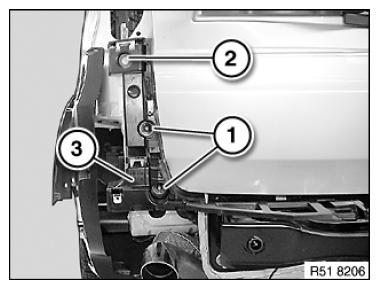

Fig 1: Identifying Guide And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
