51 47 490 Removing and installing/replacing front underbody protection

NOTE: Illustration only an example. Detail deviations, depending on engine version, are possible.

Unfasten screws (2).

Tightening torque 51 75 1AZ .

Remove front underbody protection (1).

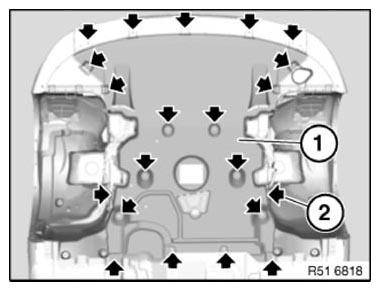

Fig 1: Locating Screws Of Front Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.
