11 13 000 Removing and installing, sealing or replacing oil sump (N20) (up to 06.2013)

Necessary preliminary tasks:

• Drain and add ENGINE OIL .
• Lower FRONT AXLE .
• REMOVE FRONT AXLE DIFFERENTIAL .
• Remove BEARING SUPPORT .

Disconnect plug connection (1) on oil level sensor.

Release bolts (2) on transmission.

Tightening torque: 24 00 1AZ .

Release bolts along line (3).

Tightening torque: 11 13 4AZ .

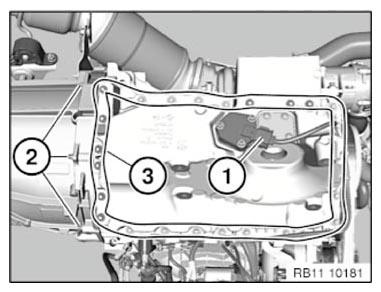

Fig 1: Identifying Plug Connection On Oil Level Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil sump in downward direction.

Assemble engine.
