66 53 060 Removing and installing/renewing the Top View camera

Necessary preliminary work:

• Remove HOUSING ON EXTERIOR MIRROR

Release screws (1).

Remove cover (2).

Detach exterior mirror camera (3) from housing (4).

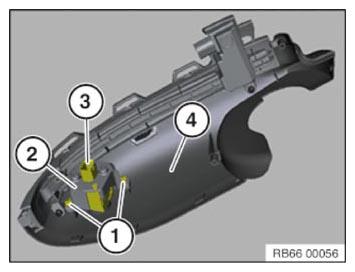

Fig 1: Identifying Exterior Mirror Camera From Housing, Cover, Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .

Carry out service function:

• 04 Driver assistance
• All-round vision camera
• Programming all-round vision camera
