31 21 180 Replacing wheel bearing for front wheel

Necessary preliminary tasks:

• Remove FRONT WHEEL .
• Remove BRAKE DISC .
  • Check brake pad and replace if necessary!

Release screws (1).

Tightening torque 31 21 1AZ .

Remove wheel bearing.

Installation note:

Replace screws (1).

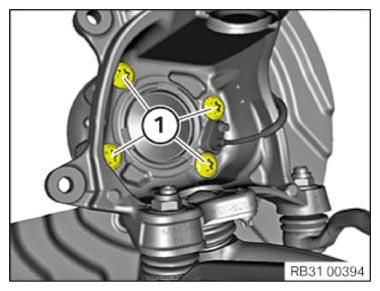

Fig 1: Identifying Screws Of Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

• Keep contact surface (2) of wheel bearing and swivel bearing clean and free from grease.
  Fig 2: Identifying Contact Surface Of Wheel And Swivel Bearing

  Courtesy of BMW OF NORTH AMERICA, INC.
