51 12 222 Removing and installing/replacing rear center cover for bumper panel

Necessary preliminary work:

Release all retainers (2).

Detach cover (1) from bumper panel (3).

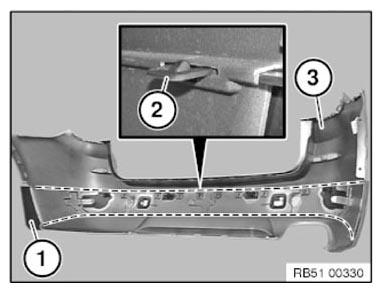

Fig 1: Identifying Bumper Panel Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) on trim (2) must not be damaged.

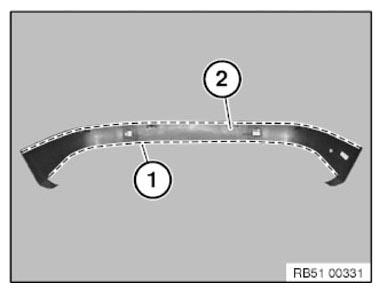

Fig 2: Identifying Bumper Trim And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
