51 11 156 Removing and installing front bumper panel

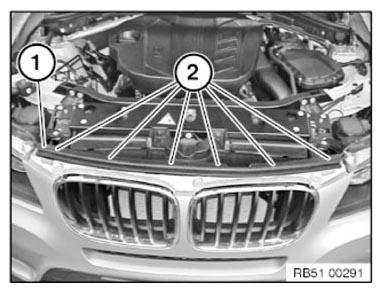

Remove gasket (1) and release screws (2) beneath it.

Fig 1: Identifying Bumper Panel Gasket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

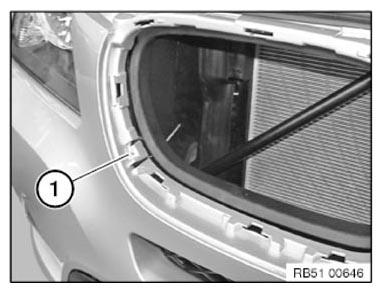

Version with holder:

Release screw (1) on left/right.

Tightening torque 51 11 12AZ .

Fig 2: Removing Bumper Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

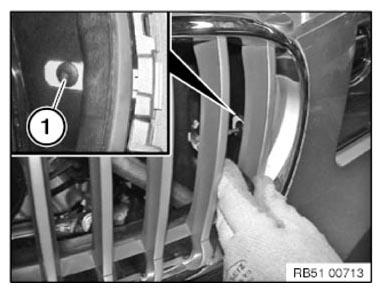

Version with cable strap:

Release left/right cable straps (1).

Fig 3: Identifying Bumper Panel Cable Straps

Courtesy of BMW OF NORTH AMERICA, INC.

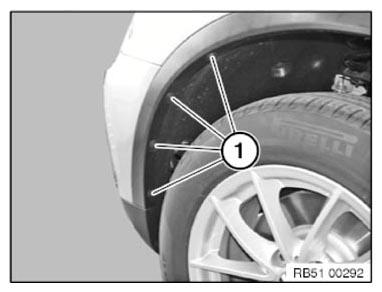

Release rivets (1) on wheel arch cover.

Fig 4: Identifying Wheel Arch Cover Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Renew rivet (1).

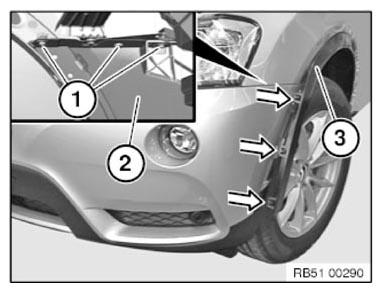

Release wheel arch cover (3) in area of bumper panel out of latch mechanisms on right/left.

Partially release wheel arch cover and fold it aside.

Unlock connector of left and right headlights and disconnect.

Release screws (1) on bumper panel (2) on the left/right.

Fig 5: Removing Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 6: Identifying Bumper Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bumper panel slightly towards the front with aid of a 2nd person.

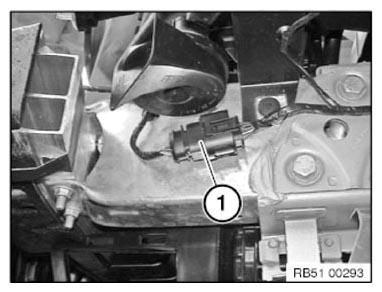

Unlock plug-in contacts (1) on left/right and disconnect.

Remove bumper panel.

Fig 7: Identifying Bumper Panel Plug-In Contacts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

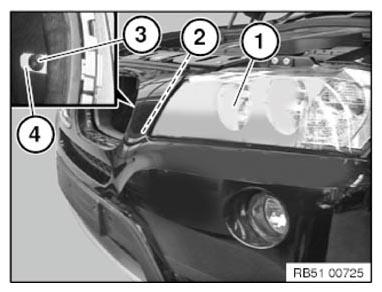

Version with holder:

Attach bumper panel with holder (4) and screw (3) on the left/right.

Tightening torque 51 11 12AZ .

Ensure a parallel gap dimension (2) to the front headlight (1).

Fig 8: Identifying Bumper Panel Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

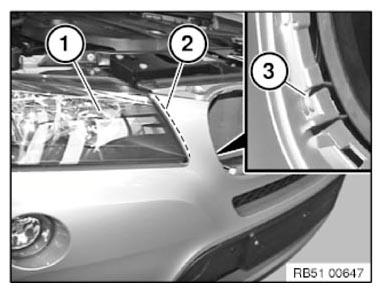

Version with cable strap:

Attach bumper panel with cable strap (3) on left/right.

Ensure a parallel gap dimension (2) to the front headlight (1).

Fig 9: Identifying Headlight Gap Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
