51 47 491 Removing refitting/replacing rear engine undercover
NOTE:

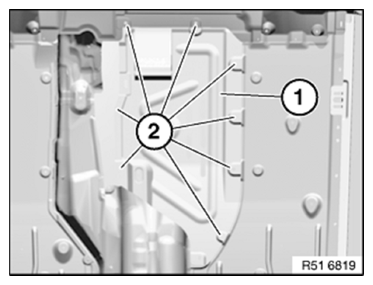

Illustration only an example. Detail deviations, depending on engine version, are possible.
Unfasten screws (2).
Unthread and remove the rear underbody protection (1) to the bottom.
Installation note:
Ensure correct fit.
