51 12... Removing and installing/replacing lower cover (middle)

Release screws (1).

Remove lower cover.

Replacement

Modify sheet nuts

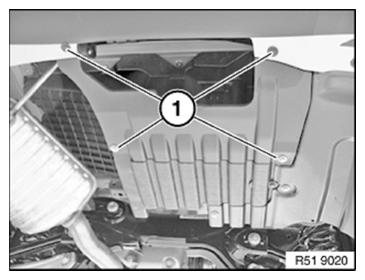

Fig 1: Identifying Lower Cover Screws
G11089973Courtesy of BMW OF NORTH AMERICA, INC.
