61 31 115 Replacing rocker switch for side window operation (front)

Special tools required:

IMPORTANT: Carry out the following work step carefully in order to avoid damaging the armrest and rocker switch.

Carefully lever out rocker switch for side window operation (1) with special tool 00 9 341 at specified points (2).

Feed rocker switch for side window operation (1) out of armrest (3).

Disconnect associated plug connection and remove rocker switch for side window operation (1).

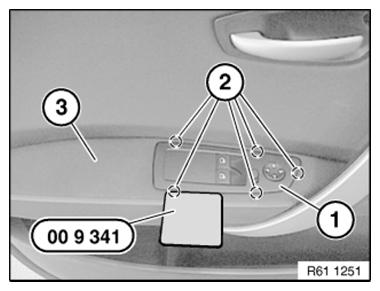

Fig 1: Releasing Rocker Switch For Side Window Operation With Special Tool (00 9 341)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining clips (1) of rocker switch for side window operation (2) must not be damaged or missing.

Make sure rocker switch for side window operation (2) is correctly seated in armrest.

Fig 2: Identifying Retaining Clips For Rocker Switch

Courtesy of BMW OF NORTH AMERICA, INC.
