65 50 055 Removing and installing/replacing Central Information Display (CID)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

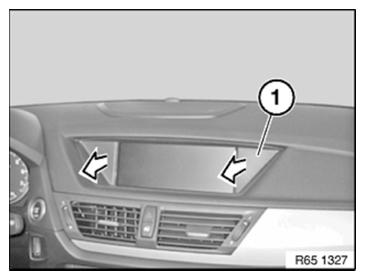

Remove cover (1) in direction of arrow.

Installation note:

Cover (1) must be correctly engaged.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

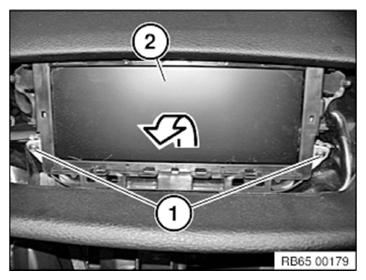

Release screws (1).

Feed out CID (2) towards front.

Fig 2: Feeding Out CID

Courtesy of BMW OF NORTH AMERICA, INC.

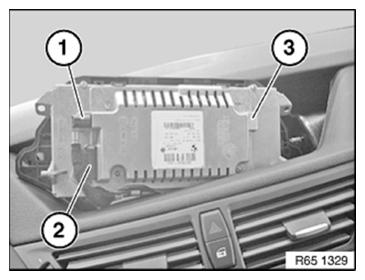

Unlock and detach plug connections (1 and 2).

Installation note:

Make sure wiring harness is correctly laid.

Remove CID (3).

Fig 3: Identifying CID And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
