65 13 065 Removing and installing/replacing front speaker carrier (in dashboard trim)

Special tools required:

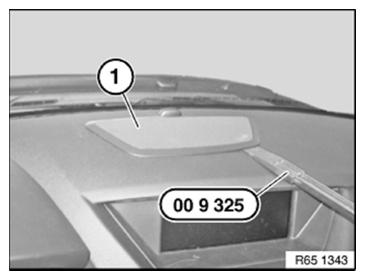

Unclip trim (1) with special tool 00 9 325 from latch mechanisms and remove upwards.

Fig 1: Removing Trim With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

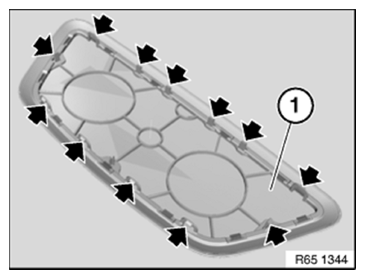

Retaining lugs (1) on speaker covers (2) must not be damaged.

Make sure speaker cover (2) is correctly seated.

Fig 2: Locating Speaker Cover Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

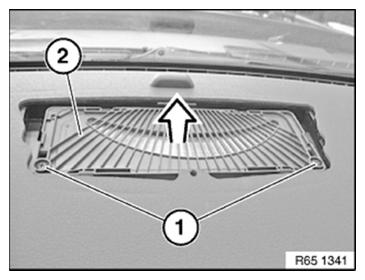

Release screws (1).

Remove speaker (2) upwards.

Fig 3: Removing Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

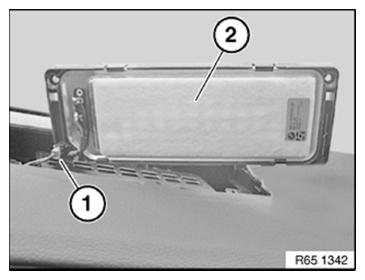

Disconnect plug connection (1) from speaker (2).

Remove speaker (2).

Fig 4: Identifying Plug Connection And Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
