65 13 050 Removing and installing/replacing speaker (tweeter in mirror triangle)

Special tools required:

Partially unclip door trim panel (1) in the area of the rearview mirror with special tool 00 9 325 .

Secure door trim panel (1) with suitable tool (2).

Partially loosen door window frame cover (3).

Fig 1: Securing Door Trim Panel With Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Cover on window frame shown removed for purposes of clarity.

Unlock catches and remove speaker (1) from cover on window frame (2).

Disconnect plug connection and remove speaker.

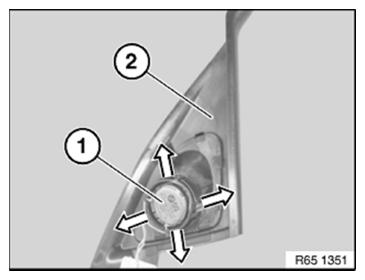

Fig 2: Removing Speaker From Cover On Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.
