65 83 020 Removing and installing (replacing) Car Information Computer (CIC)

Special tools required:

IMPORTANT: Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Fit special tool 00 9 340 on either side as illustrated.

Unclip trim (1) and remove.

Fig 1: Removing Trim Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All marked retaining lugs on trim of A/C operator unit (1) must not be damaged.

Fig 2: Locating A/C Operator Unit Trim Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

First unclip CIC trim (1) at the top and then at the bottom.

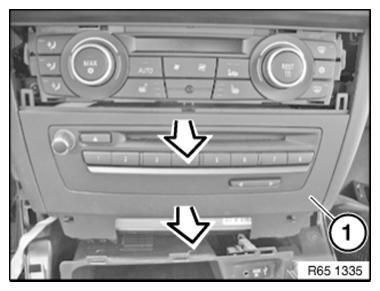

Remove CIC cover (1).

Fig 3: Removing CIC Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

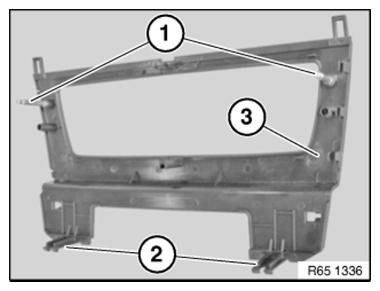

Guide pins (1) and retaining lugs (2) on CIC trim (3) must not be damaged.

Fig 4: Identifying Guide Pins And Retaining Lugs On CIC Trim

Courtesy of BMW OF NORTH AMERICA, INC.

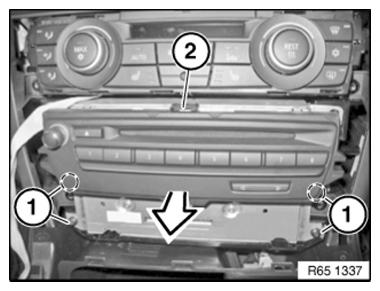

Release screws (1).

Pull CIC (2) out of guide.

Installation note:

Make sure CIC (2) is correctly seated.

Fig 5: Pulling CIC Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (2) and (3) and disconnect.

Remove CIC (1).

Fig 6: Identifying Plug Connections And CIC

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

For vehicles with Teleservices optional equipment:
