41 00... Body Gap Dimensions

The dimensions specified in this service information are applicable at an object temperature of 20°C. The aim of adjustment is to achieve a uniform join.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

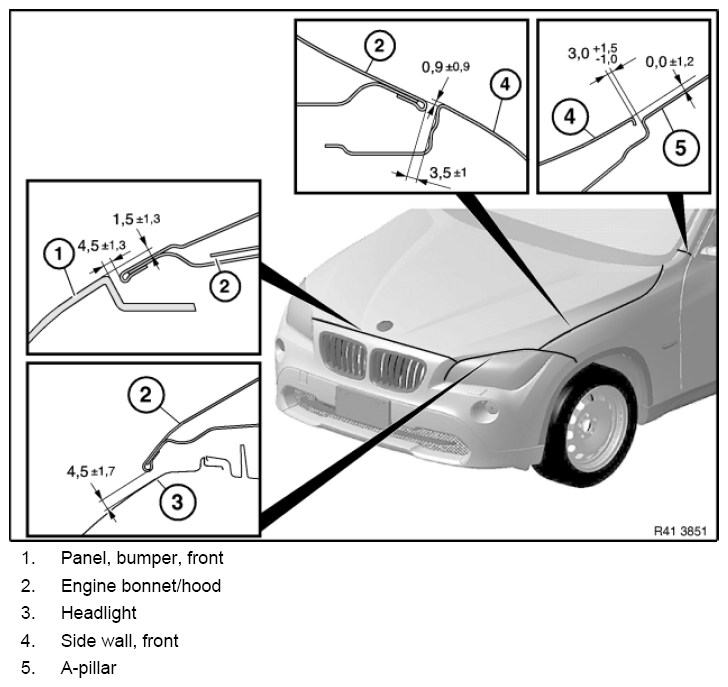

Fig 1: Front Bumper, Headlamp. Hood, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Front Moonroof, Rear Moonroof And Roof Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

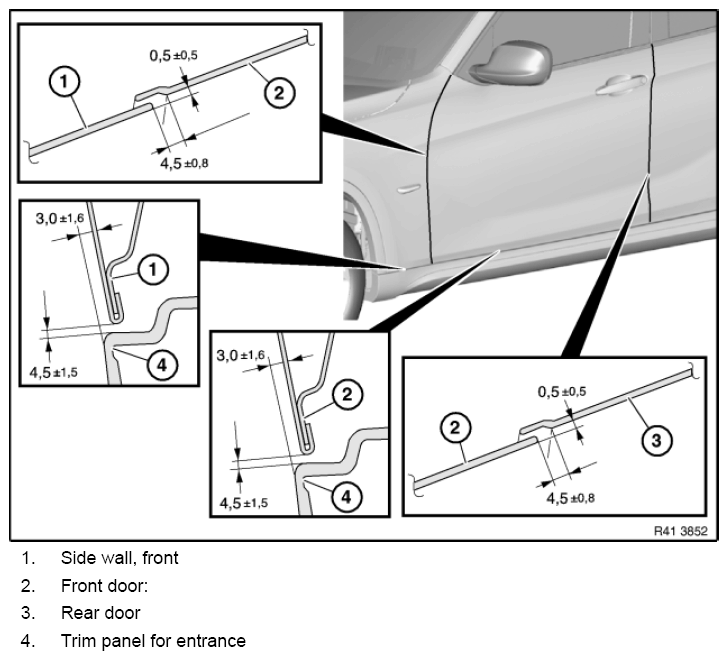

Fig 3: Front Fender, Front Door, Rear Door And Rocker Trim Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

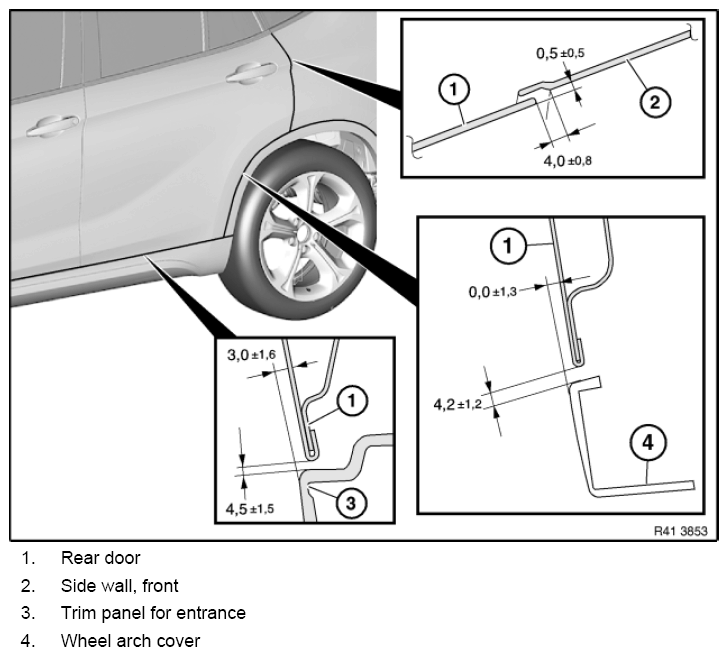

Fig 4: Rocker Trim Panel, Rear Door, Wheel Arch Cover, Quarter Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

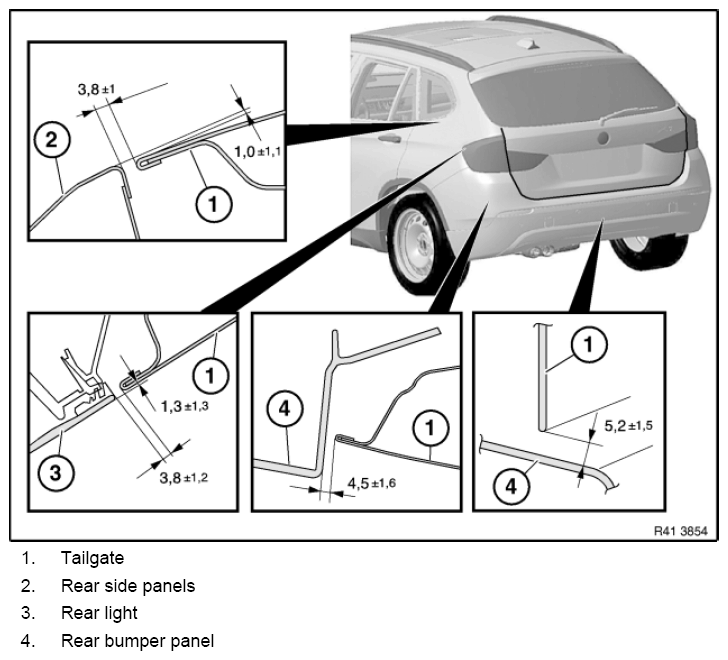

Fig 5: Tail Gate, Quarter Panel, Tail Lamps And Wheel Arch Cover Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

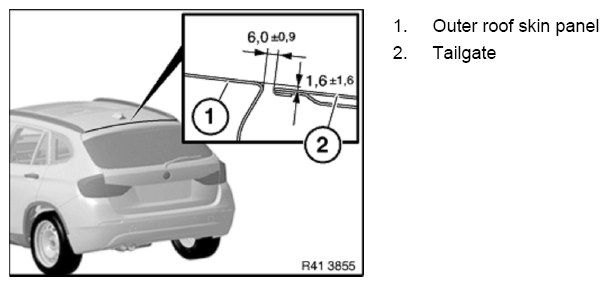

Fig 6: Roof Panel And Tail Gate Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
