11 61 368 Removing and installing/replacing rear left charge-air duct (N55)

Necessary preliminary tasks:

(1) Unlocked

(2) Locked

Installation note:

Ensure locking clamps are correctly fitted. Lock must engage.

Fig 1: Identifying Clamp In Locked And Unlocked Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Disconnect plug connection (2).

Unlock snap fastener (3).

Unfasten hose clamp (4).

Installation note:

The snap fastener (3) must snap audibly into place!

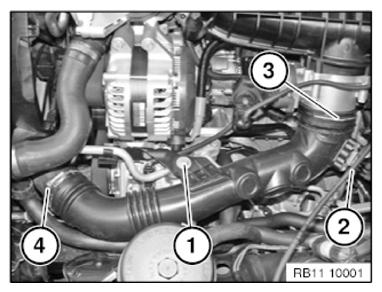

Fig 2: Identifying Hose Clamp, Plug Connection, Snap Fastener And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
