11 61 365 Removing and installing/replacing left-hand charge air duct (N20)

Necessary preliminary tasks:

(1) Unlocked

(2) Locked

Installation note:

Ensure locking clamps are correctly fitted.

Lock must engage.

Fig 1: Identifying Clamp In Locked And Unlocked Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unlock snap fastener (2 and 3).

Remove charge air duct.

Fig 2: Identifying Snap Fastener And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Visually inspect the form sealing ring (1) for correct position and damage.

VDA couplings are correctly fitted when they snap into place with an audible click.

Fig 3: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

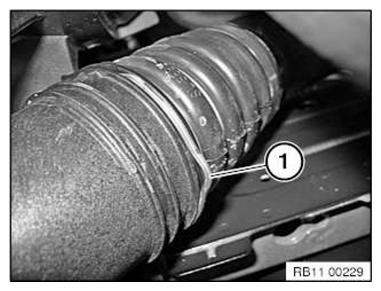

Unlock snap fastener (1).

Installation note:

The snap fastener (1) must snap audibly into place!

Fig 4: Identifying Snap Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

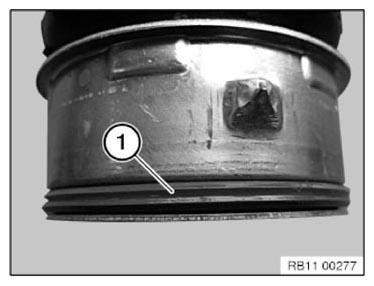

Installation note:

Visually inspect the form sealing ring (1) for correct position and damage.

VDA couplings are correctly fitted when they snap into place with an audible click.

Fig 5: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
