51 49 015 Removing and installing/replacing cover for rear window frame at top

Unclip cover (1) in marked area and remove downwards.

Installation:

Replace faulty clips.

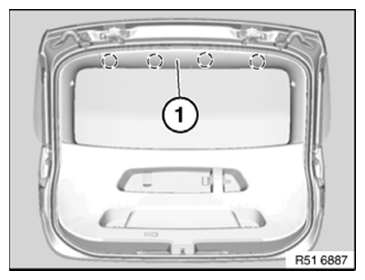

Fig 1: Identifying Rear Window Frame Cover Clipping Area

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify clips (1).

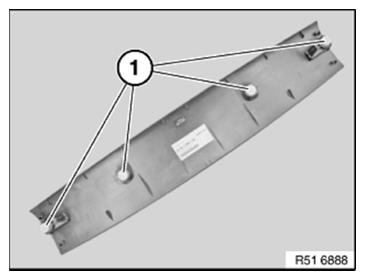

Fig 2: Identifying Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.
