51 42 000 Remove and install left or right rear door trim panel

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Unclip and remove cover (1) at handle (2) with special tool 00 9 325 as shown.

Fig 1: Removing Cover At Handle With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

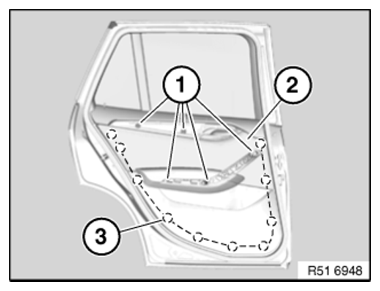

Release screws (1).

Tightening torque 51 42 1AZ .

Unclip clips (3) of door trim panel (2) starting from bottom with special tool 00 9 325 .

Fig 2: Unclipping Clips Of Door Trim Panel Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration is similar.

Carefully unclip door trim panel (1) at top from clamps (2).

Fig 3: Removing Door Trim Panel From Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable (1) from door lock (2).

Disconnect plug connections on power window switch and remove door trim panel.

Fig 4: Identifying Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips.

Ensure correct installation location:

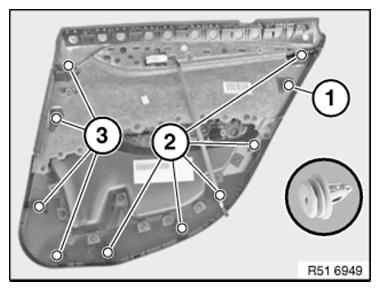

Install clips (2) and (3) with sealing ring.

Fig 5: Identifying Clips And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

After assembling the door trim panel proceed as follows:
