51 47 101 Removing and installing/replacing luggage compartment floor trim panel

NOTE: Storage shelf removed for purposes of clarity.

Lift up rear luggage compartment floor trim panel (1) and lift out slanted upwards.

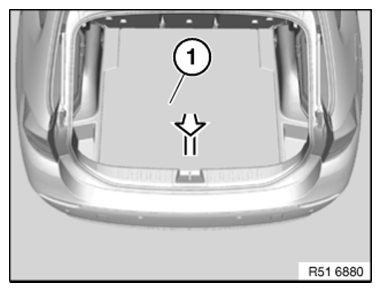

Fig 1: Lifting Up Rear Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
