63 12 895 Replacing electronics box/control unit for left adaptive headlight

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the voltage supply (lighting system and ignition off).
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.

Necessary preliminary tasks:

If necessary, remove intake silencer housing. See REMOVING INTAKE SILENCER HOUSING (N20) or REMOVING INTAKE SILENCER HOUSING (N55) .

Unlock retaining clip (1) and remove protective cap (2).

Unlock and disconnect plug connection behind.

Installation note:

Make sure protective cap (2) is correctly seated.

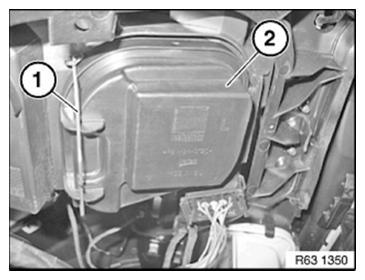

Fig 1: Identifying Retainer Clip And Protective Cap

G11093409

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unlock retaining lugs (2).

Remove electronics box/control unit for

Adaptive Headlight (3) from protective cap (4).

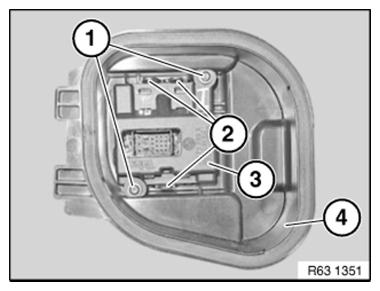

Fig 2: Identifying Retaining Lugs, Headlight, Protective Cap, And Screws

G11093070

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (2) must not be damaged.

Make sure the electronics box/control unit for Adaptive Headlight (3) is correctly seated.

Carry out VEHICLE PROGRAMMING/CODING .
