63 12 870 Replacing ignition unit for xenon headlight
WARNING:
Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the voltage supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by qualified personnel.
Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by qualified personnel.
Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .
NOTE:
Procedure shown on left side. Right side is identical.

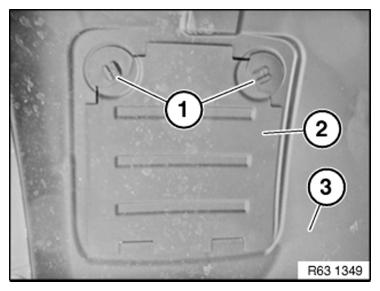

Unlock plastic fasteners (1) by turning counterclockwise through 180°.
Pull lid (2) out of front wheel arch cover (3).

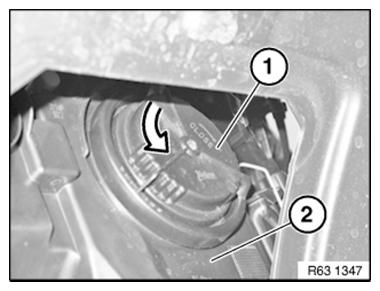

Unlock protective cap (1) in direction of arrow and remove from headlight (2).
Installation note:
Protective cap (1) must noticeably lock.
Check seal.
Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

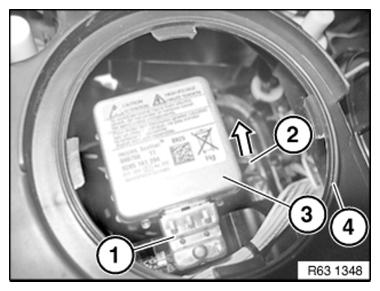

Disconnect plug connection (1).
Press locking mechanism (2) upward in the direction of the arrow.
Feed out ignition unit for xenon headlight (3) through opening (4) in headlight.
Recommendation:
Check HEADLIGHT ADJUSTMENT , correct if necessary.
