51 24 145 Removing and installing/replacing button for rear lid actuation

Special tools required:

Carefully lever out the button (1) towards the inside with special tool 00 9 325 as shown. While doing so do not damage rubber seal.

Installation:

Button must engage twice audibly.

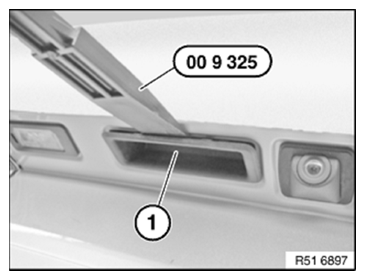

Fig 1: Levering Out Button (Rear Lid) With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from button (2).

Remove button (2).

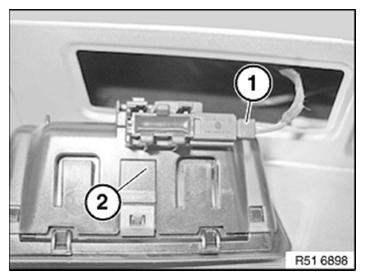

Fig 2: Identifying Button And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
