51 13... Installation of new threaded bolts on roof rails

Necessary preliminary tasks:

Do not scratch or damage visible surfaces.

Component overview:

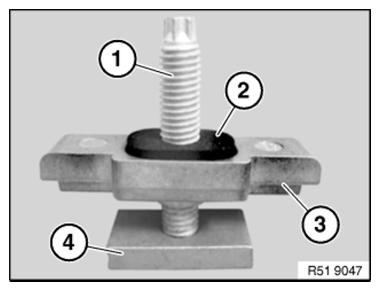

Fig 1: Identifying Roof Rail Threaded Bolt, Seal, Spacer And Threaded Stone

Courtesy of BMW OF NORTH AMERICA, INC.

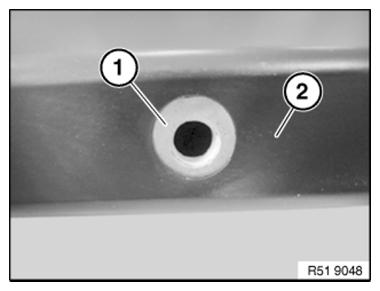

Insert threaded stone (1) in roof rails (2) and position using corresponding bolt hole.

Fig 2: Identifying Roof Rails And Threaded Stone

Courtesy of BMW OF NORTH AMERICA, INC.

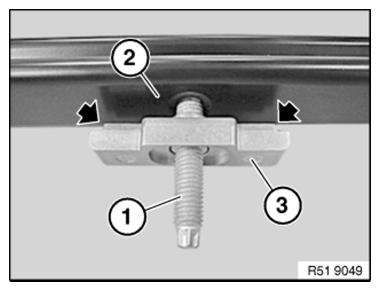

Connect spacer (3) in correct position on threaded bolt (1).

NOTE: To aid installation, move roof rails (2) into installation position.

Screw in new threaded bolt (1) by hand, until spacer (3) makes contact with roof rails (2).

Secure spacer (3) with open-end spanner SW 13 against turning and tighten threaded bolts (1).

Tightening torque: 51 13 9AZ .

Fig 3: Locating Spacer On Threaded Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

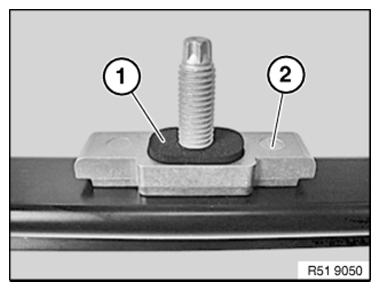

Evenly glue in new seal (1) with adhesive side facing spacer (2) into recess of spacer (2).

Fig 4: Identifying Threaded Bolt Spacer And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
