51 12... Removing and installing/replacing rear bumper panel cover (M Aerodynamics package)

Special tools required:

• 00 9 327

Remove expanding rivets (1).

Unfasten screws (2).

Unclip trim (3) with special tool 00 9 327 and remove.

Installation note:

Catches on trim (3) must not be damaged.

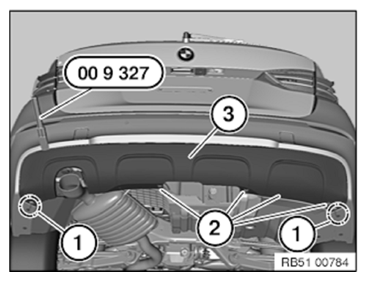

Fig 1: Unclipping Rear Bumper Trim With Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.
