51 12 825 Removing and installing/replacing center guide for rear bumper (bumper panel removed)

Feed wire harness out of guide holders (3).

Only for comfort access:

Removing bumper antenna (see arrow).

Release screws (1) and nuts (2) and remove guide (3).

Installation:

Replace faulty nuts (1).

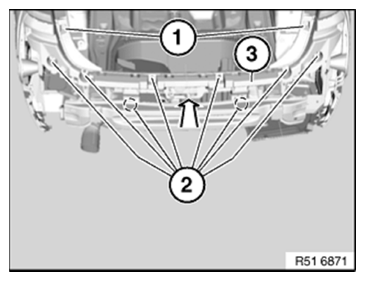

Fig 1: Removing Rear Bumper Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify sheet nuts on guide (3).

Only for comfort access:

Modify bumper antenna.
