51 12 160 Remove and install/replacing the rear bumper panel

Necessary preliminary tasks:

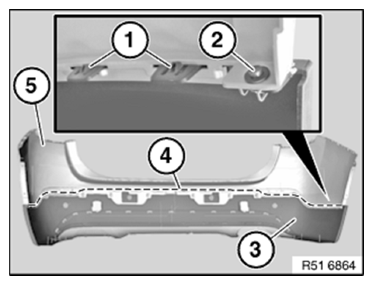

Release screws (2) on left/right.

In the highlighted area (4) release bumper panel (3) from latch mechanism (1) and remove from upper part (5).

Installation note:

Replace defective sheet metal nuts.

Retaining tabs and securing eyes of trim panels must not be damaged.

Check proper fit of upper and lower section.

Fig 1: Identifying Bumper Panel, Latch Mechanism, Bumper Upper Part And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

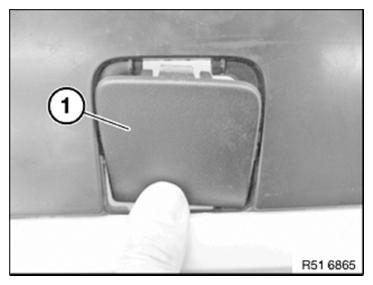

Remove protective caps (1) for towing eyes left/right.

Installation note:

Ensure to install catch tabs of protective cap correctly.

Fig 2: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

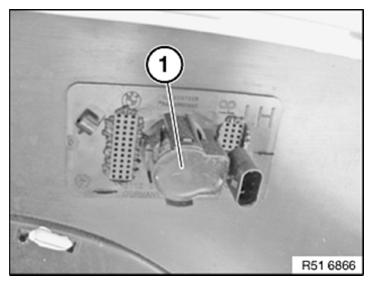

Modify all ultrasonic sensors (1).

Fig 3: Identifying Ultrasonic Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

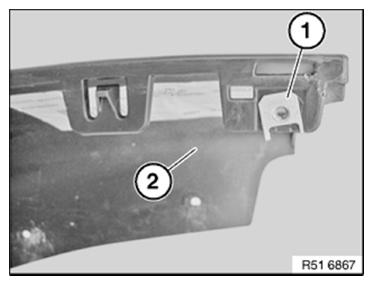

Modify sheet metal nuts (1) of bottom bumper trim (2) left/right.

Fig 4: Identifying Bottom Bumper Trim And Sheet Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Version with M Aerodynamic package:
