51 12 157 Replacing rear bumper trim
Necessary preliminary tasks:
- Modify REAR BUMPER LOWER TRIM

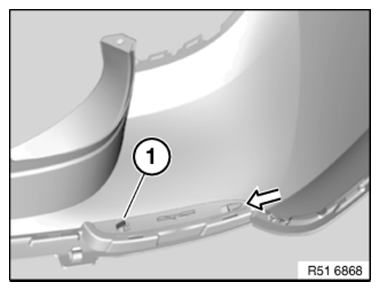

Unclip left and right rear reflectors (1) and feed out at a slight angle in direction of arrow.
Installation:
Retaining clips and tabs must not be damaged.
