51 12 156 Removing and installing rear bumper panel

Partially release cover on wheel arch (2) left and right:

Replace expanding rivet (1).

Unclip the cover (2) on the bumper, starting from the top (see arrows).

Installation note:

Remove expanding rivet (1).

Release left and right screws (3).

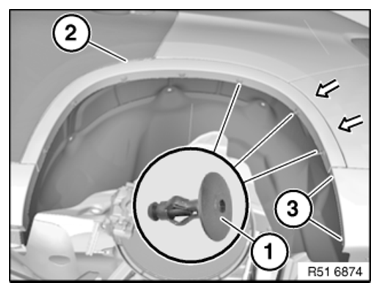

Fig 1: Locating Wheel Arch Cover Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Undo screws (1) on bumper panel (2).

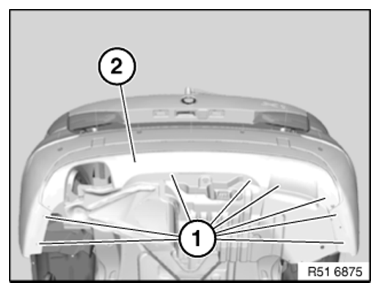

Fig 2: Identifying Bumper Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on bumper panel (2) on the left and right.

Use a helper to unclip the bumper panel (2) left and right. Unclip up to rear light, moving outward (see arrows) from the guide (see next operation).

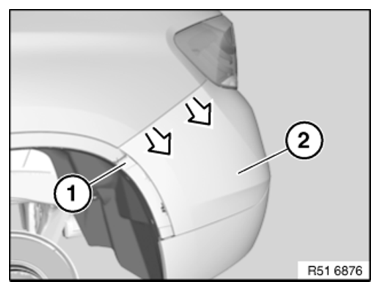

Fig 3: Unclipping Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Use a helper to unclip the bumper trim panel (2) in the highlighted areas (1), pulling away from the guide.

Only with Park Distance Control (PDC):

Disconnect all plug connections from the ultrasonic sensors.

Remove the bumper panel (2).

Installation note:

Retaining tabs on the bumper panel (2) must not be damaged.

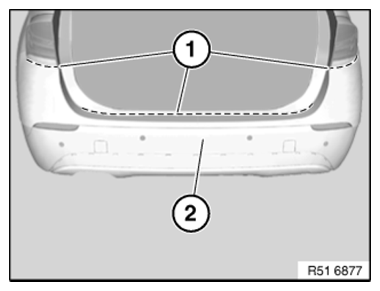

Fig 4: Identifying Bumper Trim Panel And Clip Area
