51 16... Removing and refitting/replacing spectacle compartment

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Open spectacle compartment (1).

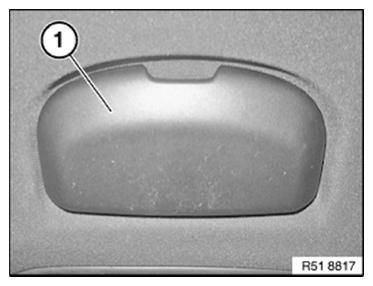

Fig 1: Identifying Spectacle Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Lever up covers (1) at front and back in the locations indicated and undo the screws behind them.

Remove spectacle compartment (2).

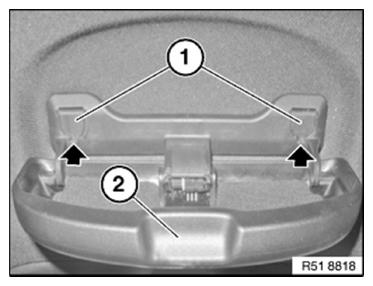

Fig 2: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.
