51 16 383 Removing and installing/replacing damper for glove box

Press down holding tab (1) from glove compartment lid (2).

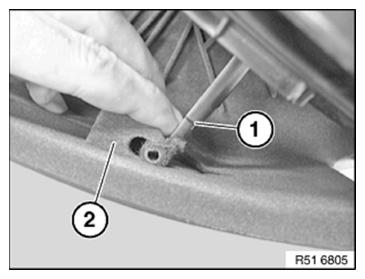

Fig 1: Pressing Down Holding Tab From Glove Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out damper (1) from fixture (2).

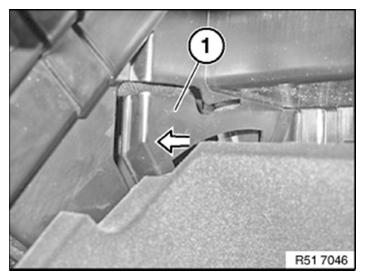

Fig 2: Identifying Damper And Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Press retaining lug (1) outwards to remove left stop (2).

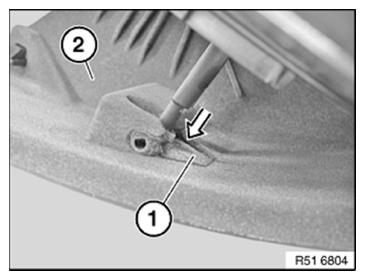

Fig 3: Pressing Retaining Lug Outwards (Left Stop)

Courtesy of BMW OF NORTH AMERICA, INC.

Press retaining lug (1) outwards to remove right stop.

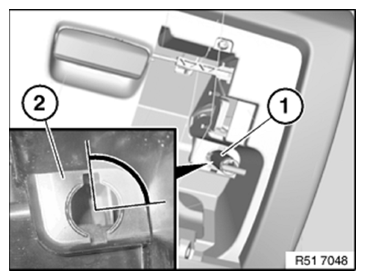

Fig 4: Pressing Retaining Lug Outwards (Right Stop)

Courtesy of BMW OF NORTH AMERICA, INC.

Lower glove compartment cover (1).

Turn damper for glove compartment (2) through 90° and remove.

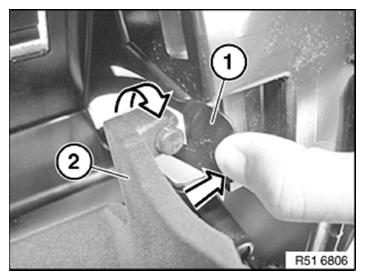

Fig 5: Turning Damper For Glove Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows sectional view.

Installation:

Fit damper (1) correctly in opening (1) of glove compartment housing (2) and lock by turning through 90°.

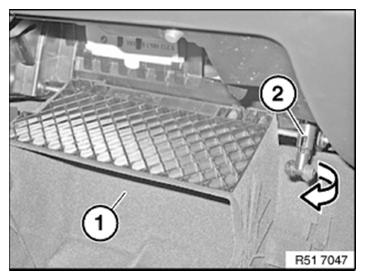

Fig 6: Locking Damper In Glove Compartment Housing

Courtesy of BMW OF NORTH AMERICA, INC.
