51 23 211 Removing and installing/replacing pull cable for hood/bonnet locks at front

NOTE: Illustration is only an example.

Unclip cable-to-clutch-housing clip (1) at marked points.

Installation:

Clips must not be damaged.

Fig 1: Removing Clutch Housing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

To open up clutch housing cover, lever up cover (2) in direction of arrow.

NOTE: Illustration is only an example.

Thread rear cable (2) out of cable guide (1) and clutch housing (3).

Fig 2: Identifying Clutch Housing Cover, Rear Bowden Cable And Clutch Housing

Courtesy of BMW OF NORTH AMERICA, INC.

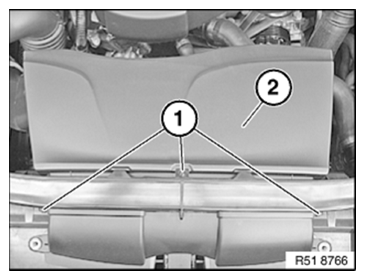

Undo screws (1) and remove rear intake hood (2).

Fig 3: Identifying Rear Intake Hood And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

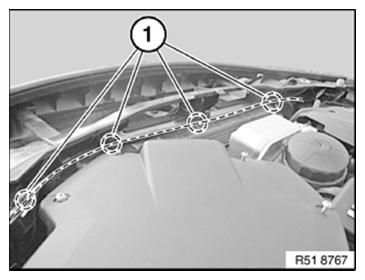

Unclip cables at marked points (1).

Carry out remaining operations for removing bonnet/hood locks left and right. See REMOVING LEFT ENGINE COMPARTMENT LID CATCHES and REMOVING RIGHT ENGINE HOOD/BONNET LOCK .

Fig 4: Identifying Cable Clipping Locations

Courtesy of BMW OF NORTH AMERICA, INC.
