51 23 110 Removing and installing/replacing left engine compartment lid catches

Disconnect cable for front engine compartment lid catches and Bowden cable for engine compartment lid at rear at coupling (1).

Operation is described in:

Removing CABLE FOR FRONT ENGINE COMPARTMENT LID CATCHES .

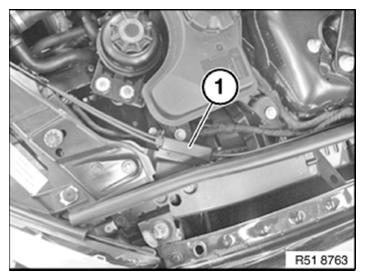

Fig 1: Identifying Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 23 2AZ .

Catch with microswitch:

Detach plug connection from microswitch.

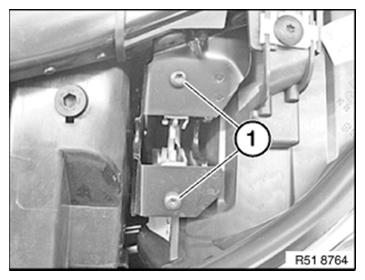

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (2) from engine compartment lid catch (1).

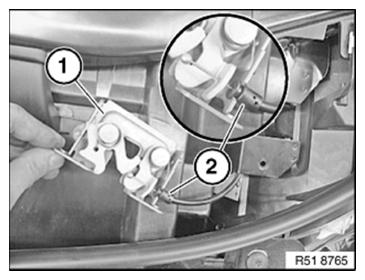

Fig 3: Identifying Bowden Cable And Engine Compartment Lid Catch

Courtesy of BMW OF NORTH AMERICA, INC.
