51 71... Partially removing and installing cover of front left or right wheel arch (rear part)

NOTE: Wheel shown removed for purposes of clarity.
Remove highlighted plastic rivets (1) from wheel arch trim (2).

Installation note:

Replace the plastic rivet (1).

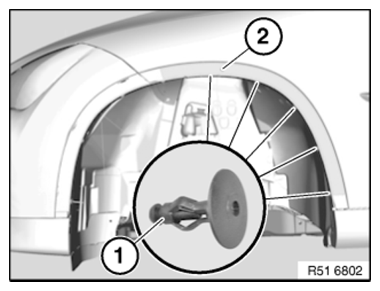

Fig 1: Identifying Wheel Arch Trim And Plastic Rivets
G11092093Courtesy of BMW OF NORTH AMERICA, INC.
