51 75 020 Removing and installing/replacing lower pedestrian protection
Necessary preliminary tasks:
- Remove FRONT UNDERBODY PROTECTION

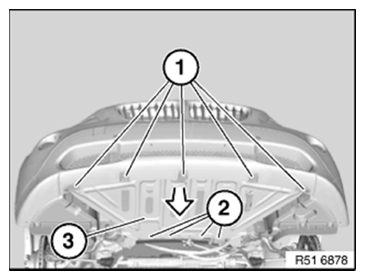

Release screws (1).
Unfasten screws (2).
Tightening torque 31 10 7AZ .
Remove pedestrian protection (3) by pulling diagonally downward and rearward (in direction of arrow).
Installation:
Correctly align pedestrian protection and then tighten screw (1) and (2).
Replacement
Modify sheet nuts
