51 14 111 Replacing model name plate, rear
IMPORTANT:
The INSTRUCTIONS FOR ADHERING BADGE EMBLEM serve as the basis for these repair instructions and must be followed without fail.
| Dimension | x | y |
|---|---|---|
| in mm | 131 | 65 |

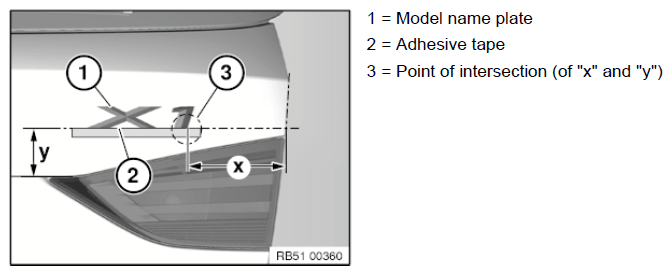

Attach the upper edge of the adhesive tape (2) offset upward by dimension "y" horizontally to the tailgate edge.
Mark dimension "x" on adhesive tape (2).
Secure the model designation (1) as follows:
- Lower edge of model name plate (1) with upper edge of adhesive tape (2)
- Outer lower corner point of model name plate (1) with point of intersection (3)
Affix model name plate (1).
Remove adhesive tape (2).
