51 14 006 Replacing badge emblem on left or right
IMPORTANT:
The INSTRUCTIONS FOR ADHERING BADGE EMBLEM serve as the basis for these repair instructions and must be followed without fail.

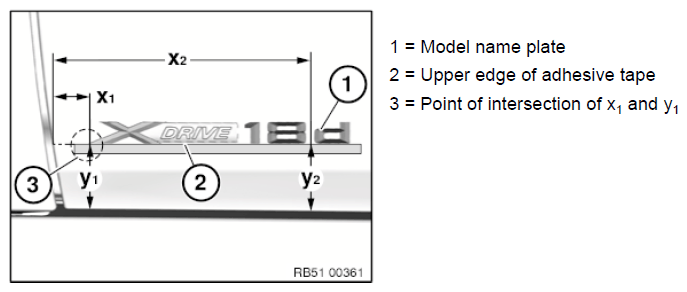

Left door:
| Dimensions | x1 | x2 | y1 | y2 |
|---|---|---|---|---|
| in mm | 25, 5 | 191 | 46 | 48 |
Points of intersection "x1 to y1 " and "x2 to y2 " determine the distance between upper edge of adhesive tape (2) and lower edge of door.
Correspondingly affix adhesive tape (2) to outer door panel.
Mark dimension "x1 " on adhesive tape (2).
Affix the model designation as follows:
- Lower edge of model name plate (1) with upper edge of adhesive tape (2)
- Outer lower corner point of model name plate (1) with point of intersection (3)
Affix model name plate (1).
Remove adhesive tape (2).

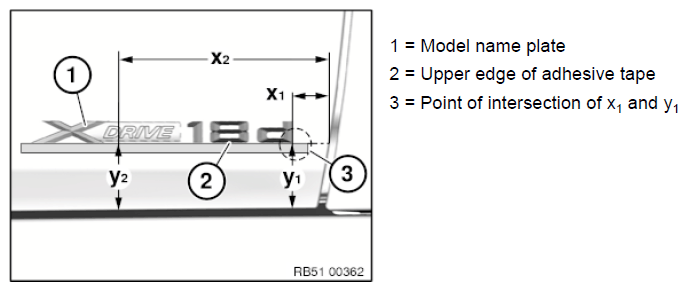

Right door:
| Dimensions | x1 | x2 | y1 | y2 |
|---|---|---|---|---|
| in mm | 26 | 196 | 46 | 48 |
Procedure same as for left-hand door.
