72 11 070 Removing and installing/replacing front lower belt fitting (belt tensioner), driver's seat
Necessary preliminary tasks:
- Remove FRONT SEAT, DRIVER'S SIDE .
Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

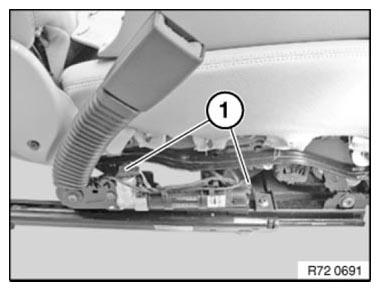

UNLOCK AND DISCONNECT plug connections (1).

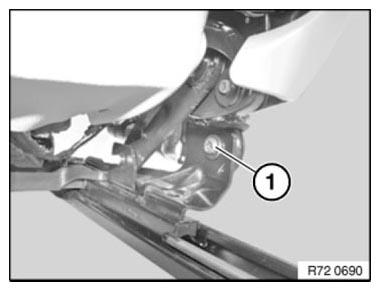

Release screw (1).
Installation note:
Replace screw (1).
Tightening torque 72 11 3AZ .
Remove seat belt tensioner.
Installation note:
Belt tensioner is coded against incorrect installation.
