12 00 Removing and installing/replacing ignition coil cover (N55)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Pull ignition coil cover (1) off of rubber mounts and remove in direction of travel.

Release engine oil cooler lines from ignition coil cover if necessary.

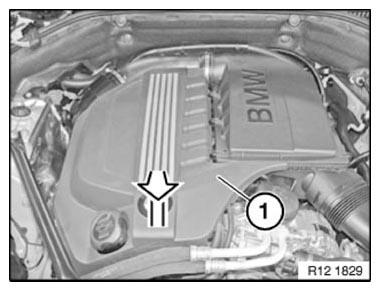

Fig 1: Removing Ignition Coil Cover

Courtesy of BMW OF NORTH AMERICA, INC.
