Pressure converter, cylinders 5-8

Disconnect plug connection (1) on pressure converter.

Installation note:

Plug connection (1) must snap audibly into place!

Disconnect black vacuum hose at connection (VAC = vacuum reservoir).

Disconnect black/blue vacuum hose at connection (OUT= turbocharger vacuum unit).

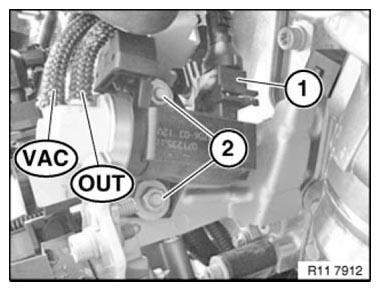

Fig 1: Identifying Black/Blue Vacuum Hose Connection With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Tightening torque 11 65 8AZ .

Remove pressure converter.

Check activation via BMW diagnosis system.
