Necessary preliminary work

• Remove right TURBOCHARGER  .

Release screws (1).

Remove electric changeover valve (2).

Installation note:

Replace O-ring.

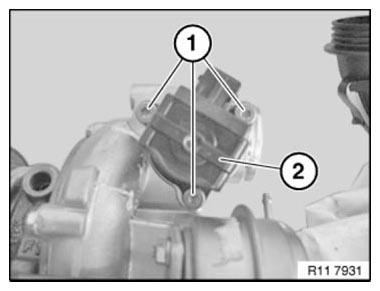

Fig 1: Identifying Electric Changeover Valve And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Follow diagnosis instruction.
