Replace hose clamp (1)

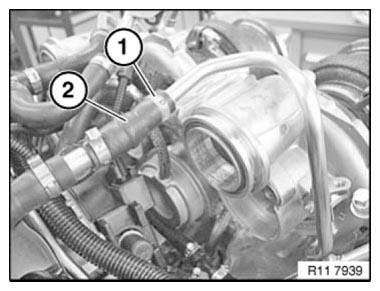

Fig 1: Identifying Coolant Feed Line And Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (4) with a suitable tool.

NOTE: Oil return pipe (3) can only be removed with turbocharger.

Tightening torque 11 42 10AZ .

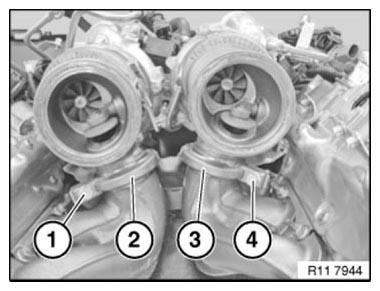

Fig 2: Identifying Oil Return Pipe With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Open V-band clamp (2).

IMPORTANT: Do not mechanically deform oil return line.

Remove turbocharger with oil return line in upward direction.

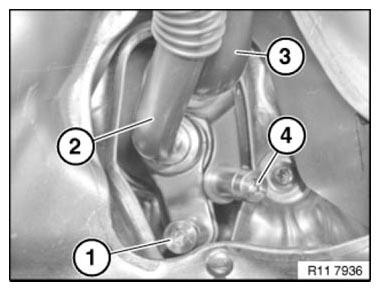

Fig 3: Identifying V-Band Clamp With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, convert coolant feed line to new turbocharger.

Release banjo bolt (1).

Tightening torque 11 53 2AZ .

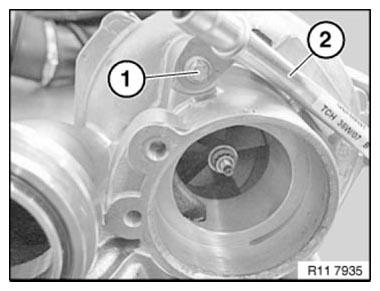

Fig 4: Identifying Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 53 3AZ .

Modify coolant feed line (2).

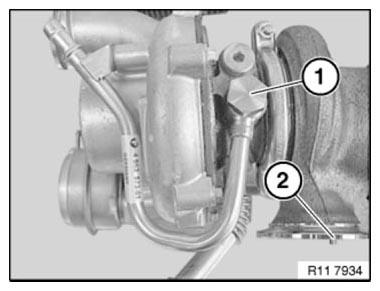

Fig 5: Identifying Coolant Feed Line With Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 42 9AZ .

Remove oil return pipe (2).

Installation note:
