Replace all sealing rings

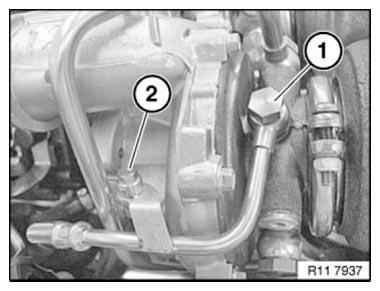

Fig 1: Identifying Banjo Bolt With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 53 3AZ .

Release banjo bolt (2).

Tightening torque 11 53 2AZ .

Lay coolant return line to one side.

Installation note:

Fig 1: Identifying Banjo Bolt And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Open hose clamp (1).

Detach coolant feed line (2).

Installation note:
