Necessary preliminary work

• Remove CATALYTIC CONVERTER , cylinders 5 - -8.

Disconnect plug connection (1) on electric changeover valve (2).

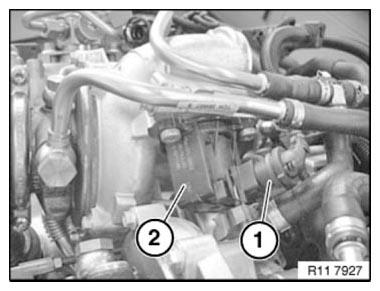

Fig 1: Identifying Plug Connection On Electric Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 42 7AZ .

Unfasten banjo bolt (2).

Tightening torque 11 42 4AZ .

Lay oil line from turbocharger to side.

Installation note:
