Necessary preliminary work

• Remove CATALYTIC CONVERTER , cylinders 1-4

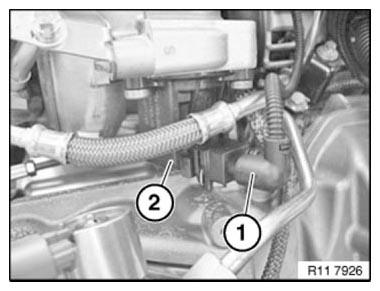

Disconnect plug connection (1) on electric changeover valve (2).

Fig 1: Identifying Plug Connection On Electric Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 42 7AZ .

Unfasten banjo bolt (2).

Tightening torque 11 42 4AZ .

Lay oil line (3) from turbocharger to side.

Installation note:
