Renew cylinder head gasket (2)

Fit new cylinder head gasket (2).

NOTE: Graphic corresponds to cylinders 1-4.

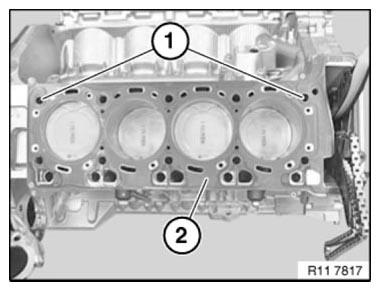

Fig 1: Identifying Fitting Sleeves And Cylinder Head Gasket
G06888447Courtesy of BMW OF NORTH AMERICA, INC.

Put the cylinder head on.

Do not wash off bolt coating.

Installation note:
