Replace sealing ring

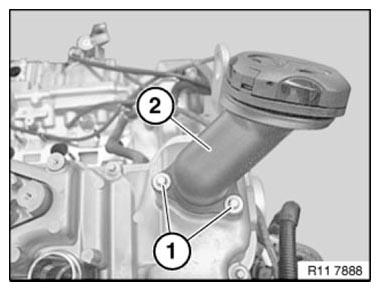

Fig 1: Identifying Oil Filler Neck And Screws
G06888464Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts in sequence (17 to 1).

Remove cylinder head cover.

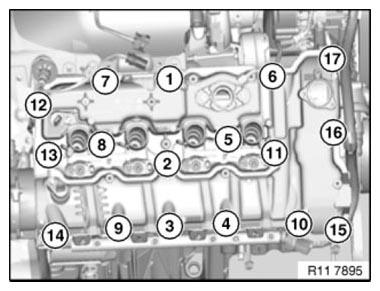

Fig 2: Identifying Cylinder Head Cover Bolts Releasing Sequence
G06888465Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surface (1) with special tool 11 4 470 .

Installation note:
