Renew profile seal of cylinder head cover

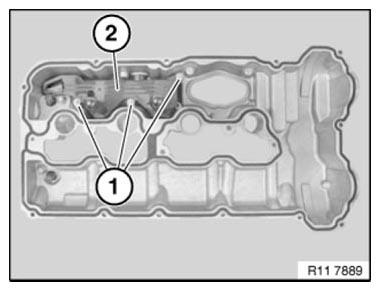

Fig 1: Identifying Profile Seal Of Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

It is important to join screw (1) for exact positioning of the camshaft sensors.

Fit cylinder head cover.

Position screw (1).

Release screw (1) by 90°.

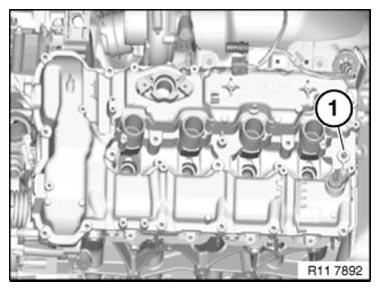

Fig 2: Identifying Screw Of Camshaft Sensors

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cylinder head cover in sequence (1 to 17) in two work steps.

Tightening torque 11 12 3AZ .

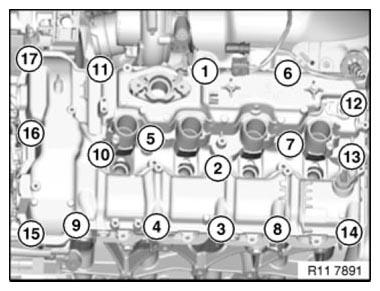

Fig 3: Identifying Cylinder Head Cover Bolts Releasing Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
